| Material: | |
|---|---|
| Color: | |
| Manufacturing process: | |
| Finish: | |
| Quantity: | |

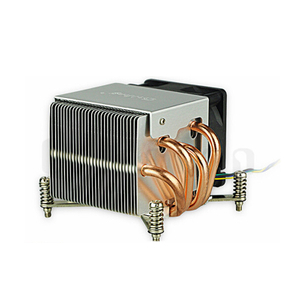

Welcome to visit Aluminum Heatsink at GOLDCONN.COM, Goldconn focus on one stop solution of customized aluminum heatsink from a new design to mass production. Heat pipe heat sink is composed of sealing tube, suction core and steam channel. The suction core is surrounded on the wall of the sealed tube and impregnated with saturated volatile liquid. The liquid can be distilled water, ammonia, methanol or acetone.
heat pipe heat sink has the following advantages
● Heat pipe heat sink has fast thermal response speed, Its heat transfer capacity is more than 1,000 times greater than that of copper tubes of the same size and weight;
● Heat pipe heat sink Small size and light weight;
● High heat dissipation efficiency, can simplify the heat dissipation design of electronic equipment, such as variable air cooling for self-cooling;
● Heat pipe heat sink do not need external power supply, work without special maintenance;
● Has a good isothermal, thermal balance, the evaporation section and cooling section of the temperature gradient is quite small, can be approximately regarded as 0;
● Heat pipe heat sink is safe and reliable operation, does not pollute the environment.

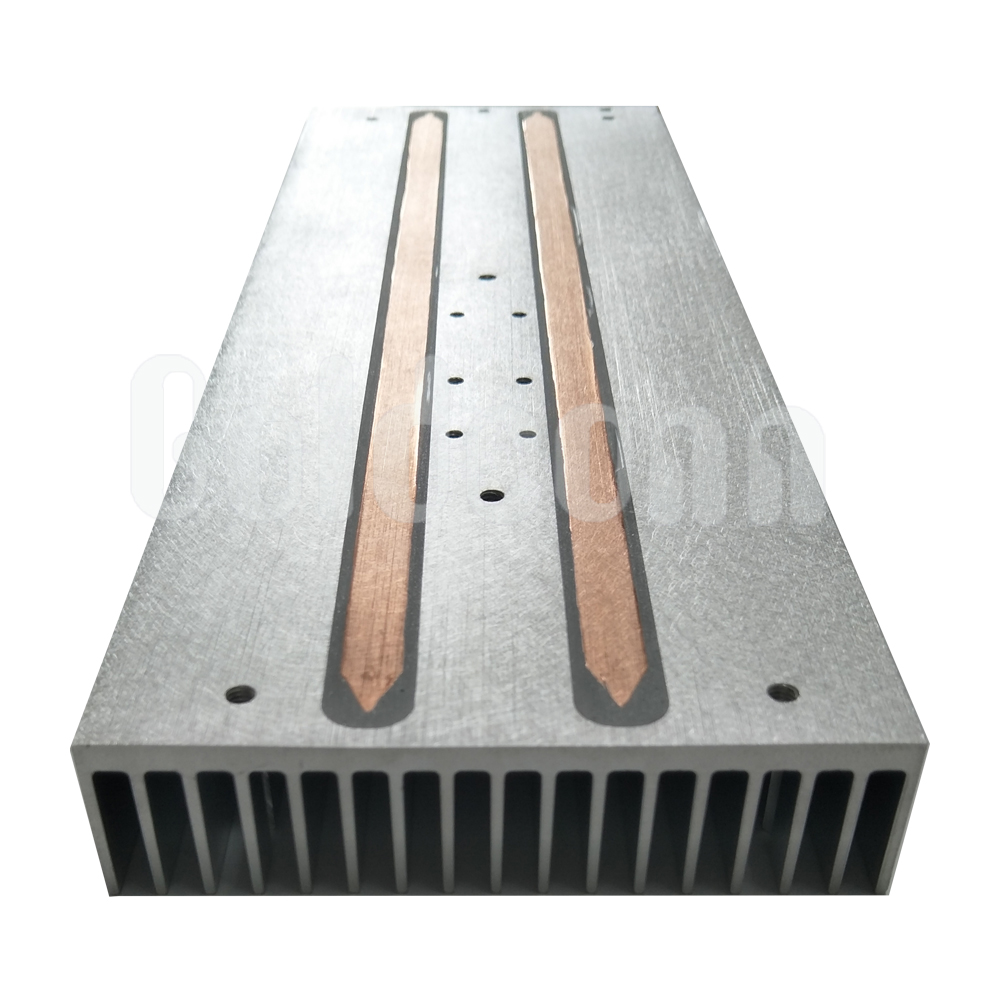

Goldconn provides custom heat pipe heat sink design and manufacturing and standard heatpipe heatsinks.
Product detailed specification as following
| Material | AL6063 T5 + Copper |
| Tolerance | +/-0.15mm |
| Surface Treatment | Polishing |
| Main Process | Extrusion=> cutting=>CNC machining =>Copper pipe assembling=>Polishing=>cleaning=>inspection |
| Quality Control | Strictly Quality control in the whole process, from material to packing |
| 3D projector, caliper, Coordinate-measuring machine | |
| Application | Industry equipment |
| Customized Drawings | Auto CAD, JPEG, PDF, STP, IGS, and most other file formats are accepted |
